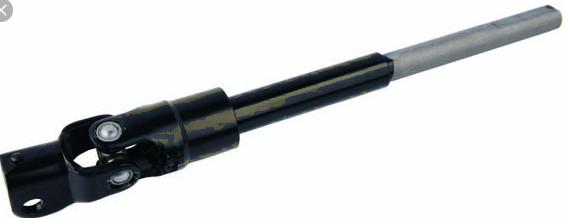

8200705018 Steering Shaft Universal Joint Coupling Tripod Column Steel Material

8200705018 Tripod Column Master II Original Renault -19 1988-2000/ R-20 DIREKS.M​​AVSALI

Tripod Column Master II 8200705018 Original Renault -19

1988-2000/ R-20 DIREKS.M​​AVSALI

The steering shaft universal joint coupling,
or simply steering u-joint is a small but important part of the steering system. In most cars with an intermediate steering shaft, there are two u-joint couplings. The top u-joint connects the intermediate shaft to the steering column. The lower u-joint connects the intermediate shaft to the steering rack, see the diagram. To accommodate the steering tilt and telescope function, as well as for crash safety, the steering shaft u-joint must rotate at an angle.

The steering shaft u-joint must transfer the steering
force from the steering wheel to the steering rack at an angle, without

resistance or play. A faulty u-joint can cause looseness or seizing felt in

the steering wheel. A vehicle with a bad steering u-joint is unsafe to drive.

How easy is it to replace the steering u-joint?
In most cars, it's not very difficult, although the u-joint is often seized on the shaft and might be difficult to remove. In some cars, it's important to mark the steering u-joint position on the steering rack shaft and the intermediate shaft splines, as the new u-joint must be positioned in the same way. In some cars, the u-joint must be replaced with the shaft. It's best to consult the service manual for the vehicle for the proper repair procedure.

steering drive shaft

steering universal joint

8200705018 Steering Shaft Universal Joint Coupling Tripod Column Steel Material Images
